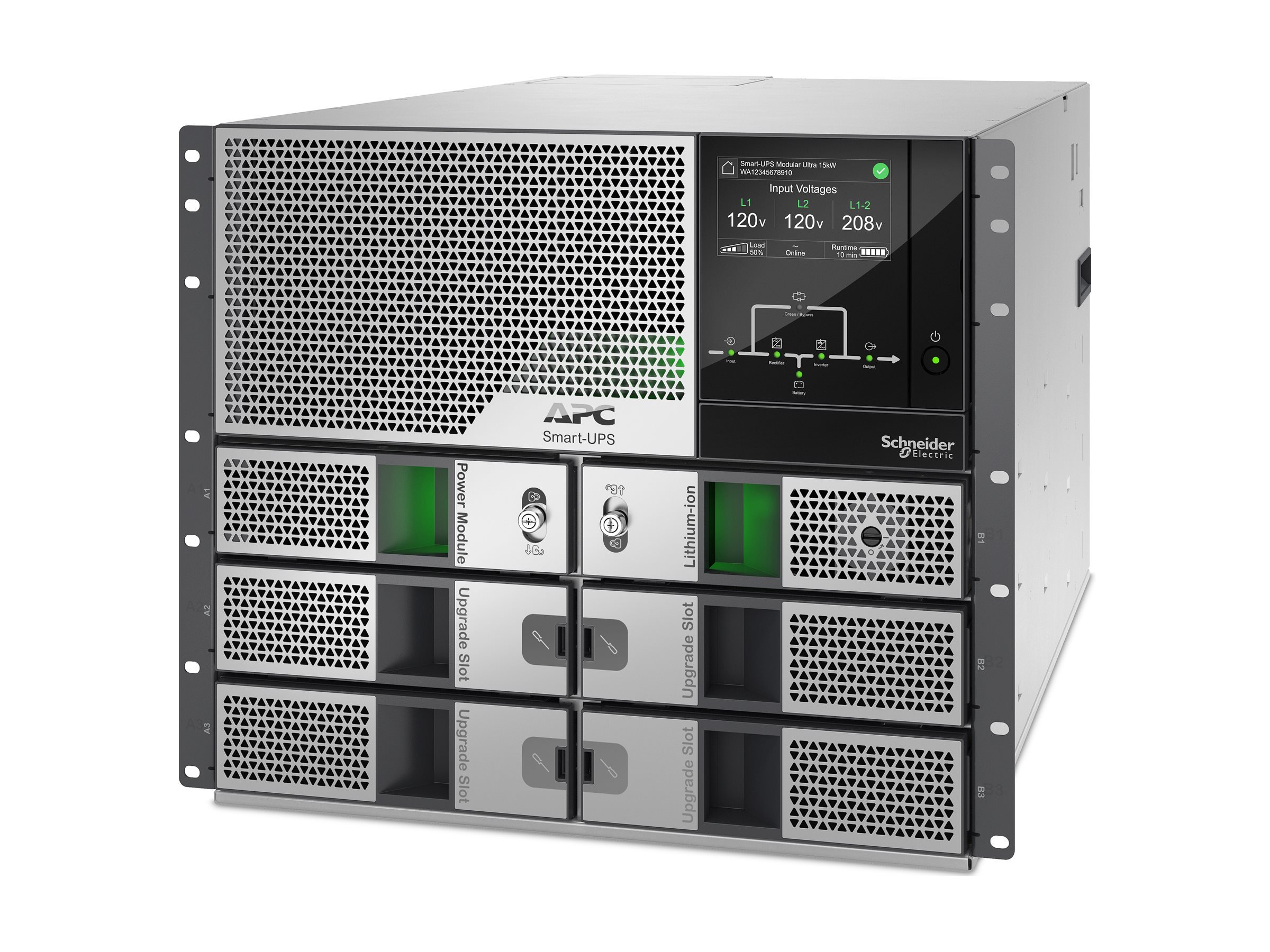

SmartUPS Modular Ultra: 5 kVA - 20 kVA UPS
Specifications
Manufacturer: Schneider/APC (American Power Conversion)
Model: SmartUPS Modular Ultra
Power Rating: 5 kVA - 20 kVA
Voltage In: 208/240 V AC Three-Phase
Special Features:
Next-gen semiconductor technology for 2.5x more power in half the size
Touchscreen display with Start-up wizard, access to status and configuration menus & data, including serial number
More redundancy: power, battery, displays and intelligence modules
At-a-glance UPS and module status
Module Bays within the 9U UPS chassis allowing added power or battery modules as needed
Connect to EcoStruxureTM IT via the embedded network port
Lithium-ion batteries
The service bypass unit, when installed on top of the UPS, allows utility power to bypass the UPS
The universal bays of the UPS allows for either power or battery modules in each slot
Gain more resiliency by adding redundant power or battery modules
Each external battery chassis has 4 battery module bays
Supports up to 6 battery chassis with 4 battery modules each
Supports more battery modules than power modules
More Information
SThe world’s most popular UPS is now available with a compact, modular design and improved battery life. APC Smart-UPS Modular Ultra offers trusted, premium power protection to ensure network and data availability. Designed for local edge environments and row data centers, the Smart-UPS Modular Ultra provides consistent and reliable connectivity at the most critical moments. For the first time, scale up to 20kW of single-phase power protection in a smaller, lighter and more powerful modular UPS in a rack mount or standalone tower solution. More scalable power in less space enables you to adapt fast and scale as your business grows. Increased UPS battery life and fewer maintenance service costs provide a lower total cost of ownership over 10 years.
That’s Certainty in a Connected World.
